Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity

Xiamen Wuhao Industry & Trade Co., Ltd.
Contact Now

Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity

  • 1
  • 2

Brand Name : Wuhao

Model Number : C2-1000

Place of Origin : China

MOQ : 50 units

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 40000 per month

Delivery Time : 15-20 days

Packaging Details : (1) Stretch films and plastic banding wrapped (2) Packaged as per customer's requirements

Model No. : C2-1000

External Size : 1200*1000*890mm

Internal Size : 950*750*700mm

Wire Gauge : 5.6mm

Mesh Size : 50*100mm

Surface Treatment : Zinc plated/ Hot dip galvanized/ powder coating

Option : castors, lid, pp sheet and so on

Application : Material handling, transport, storage, warehouse and so on

Contact Now

Storage Container for Warehouse Stackable Wire Container Foldable

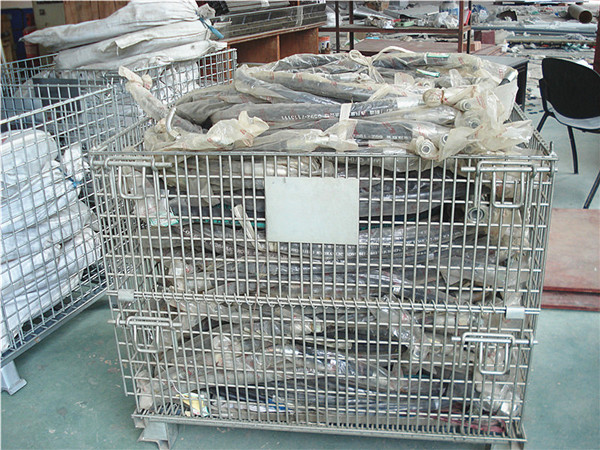

Wire mesh container

High-visibility parts storage for manufacturing and warehousing. Features reinforced under carriage and support legs, fully galvanized finish and a collapsible, stackable design for efficient storage. Folds flat for space-saving storage, with front drop-gate for easy access. Dimensions available, Material Wire mesh, Foldable Yes, Flared legs allow for easy 4-high stacking.

• 1200L x 1000W x 890H mm/ 1000L x 800W x 840H mm/ 800L x 600W x 640H mm
• Rugged 2-gauge 2in x 2in wire mesh with reinforced understructure
• Many capacity available
• Flared legs allow for easy 4-high stacking

Castors options

Roller bearing swivel casters are made of high-impact polypropylene, with 2 locking casters.

Two swivel locking poly casters and two rigid poly casters

Other options

It can work with pp sheet, wood pallet, plastic pallet, a top/cover, and casters and so on.

Specification:

Product Description Brand WUHAO
Type wire container, wire mesh container
Product code C2-1000
Dimension(L*W*H) 1200x1000x890mm
Mesh size 50x100mm
Wire guage 5.8mm
Weight 53kg
Loading Capacity 1000kg
Stackability four-layers
Material Steel wire and cold-rolled steel plate
Finishing Zinc plating, powder coat
Quantity/20Gp 144 units
Quantity/40Gp 324 units
Product shelf life up to 3 years under proper handling
MOQ no
Application warehouse, supermarket, logistics, etc.

Regular production models

C Series

Item No.

Specification

Wire diameter Mesh gauge Load capacity Self-weight Feet height

Load quantity

External size (L*W*H)(mm) Internal size (L*W*H)(mm)

(mm)

(mm)

(kg)

(kg)±2%

(mm)

20' FT

40 ' FT

C1-1500

1200*100*890

1150*950*750

5.8 50*50 1500 60

100

144

324

C1-1300 5.6 50*50 1300 55
C2-1000 5.8 50*100 1000 53
C2-800 5.6 50*100 800 48
C3-2000 6.3 50*50 2000 68

(1) Customized size: the size, wire diameter, mesh gauge can be customized as your design.

(2) Surface treatment: galvanized or powder coating.

Features:

• Collapses in seconds without the need of any tools
• Drop down gate with self locking latches provides access even when stacked.
• Zinc plated finish
• Easy to operate or fold: one or two person’s operation
• Ergonomic: Easy access to the products
• Good product visibility
• No detachable parts or no loose parts
